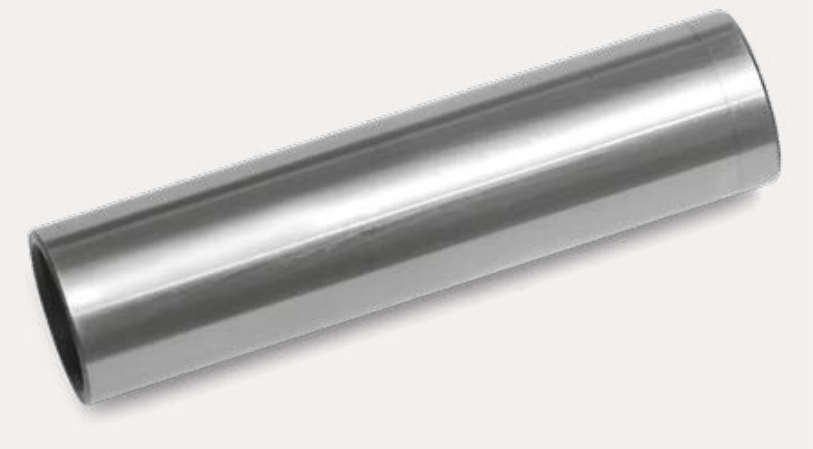

Втулка
Втулка
Материал: 18ХГ
Термическая обработка: цементация

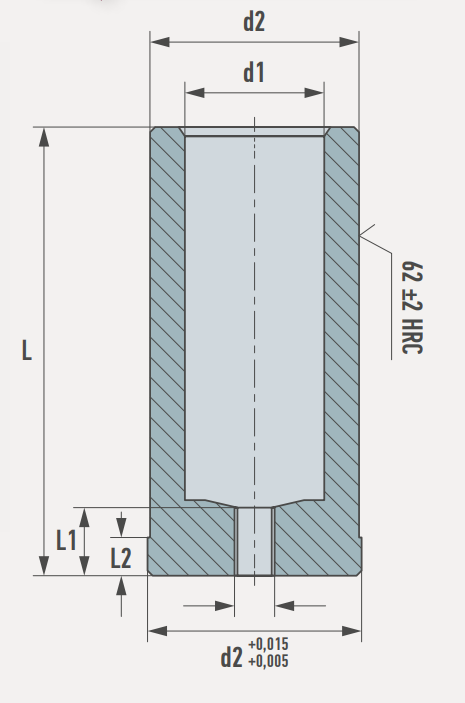

Характеристики
| Код товара | Ød2 | L | d1 | M | L1 | L2 | d2 Tol. |
| SKP-5161 | 20 | 30 | 16 | 12 | 10 | 2 | g6 |
| SKP-5162 | 20 | 40 | 16 | 12 | 10 | 2 | g6 |
| SKP-5163 | 20 | 60 | 16 | 12 | 10 | 2 | g6 |
| SKP-5164 | 20 | 80 | 16 | 12 | 10 | 2 | g6 |
| SKP-5165 | 20 | 100 | 16 | 12 | 10 | 2 | g6 |
| SKP-5166 | 20 | 120 | 16 | 12 | 10 | 2 | g6 |
| SKP-5167 | 20 | 140 | 16 | 12 | 10 | 2 | g6 |
| SKP-5168 | 20 | 160 | 16 | 12 | 10 | 2 | g6 |
| SKP-5169 | 26 | 30 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5170 | 26 | 40 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5171 | 26 | 60 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5172 | 26 | 80 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5173 | 26 | 100 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5174 | 26 | 120 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5175 | 26 | 140 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5176 | 26 | 160 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5177 | 26 | 180 | 21 | 12 | 13 | 2.5 | g6 |
| SKP-5178 | 30 | 40 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5179 | 30 | 60 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5180 | 30 | 80 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5181 | 30 | 100 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5182 | 30 | 120 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5183 | 30 | 140 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5184 | 30 | 160 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5185 | 30 | 180 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5186 | 30 | 200 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5187 | 30 | 240 | 25 | 12 | 13 | 2.5 | g6 |
| SKP-5188 | 42 | 40 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5189 | 42 | 60 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5190 | 42 | 80 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5191 | 42 | 100 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5192 | 42 | 120 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5193 | 42 | 140 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5194 | 42 | 160 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5195 | 42 | 180 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5196 | 42 | 200 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5197 | 42 | 220 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5198 | 42 | 260 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5199 | 42 | 300 | 33 | 12 | 16 | 4.5 | g6 |
| SKP-5200 | 54 | 60 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5201 | 54 | 80 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5202 | 54 | 120 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5203 | 54 | 160 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5204 | 54 | 200 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5205 | 54 | 240 | 43 | 12 | 16 | 4.5 | f6 |
| SKP-5206 | 54 | 280 | 43 | 12 | 16 | 4.5 | f6 |
