Газовые пружины модели HV 1000
Газовые пружины модели HV 1000
Характеристики

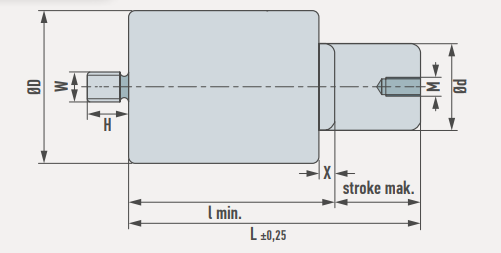

| Urun Kodu | Stroke | l | L | 0D | 0d | M | W | H | X | ||
| TF-13294 | 13 | 51 | 64 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13295 | 16 | 54 | 70 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13296 | 19 | 57 | 76 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13297 | 25 | 63 | 88 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13298 | 32 | 70 | 102 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13299 | 38 | 76 | 114 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13300 | 50 | 88 | 138 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13301 | 63 | 101 | 164 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13302 | 75 | 113 | 188 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13303 | 80 | 118 | 198 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13304 | 100 | 138 | 238 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
| TF-13305 | 125 | 163 | 288 | 50 | 28 | M8 | M16x2 | 19 | 1 | 1000 | ~1950 |
