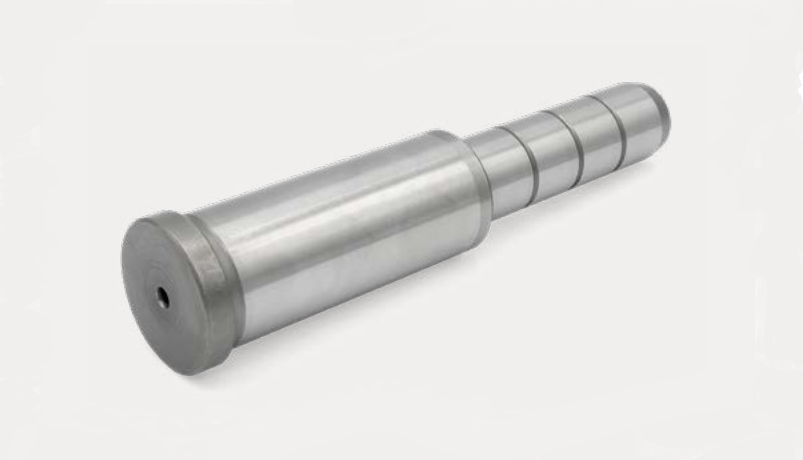

Изготовление штампов и штамповой оснастки деталей Колонка ступенчатая

Характеристики

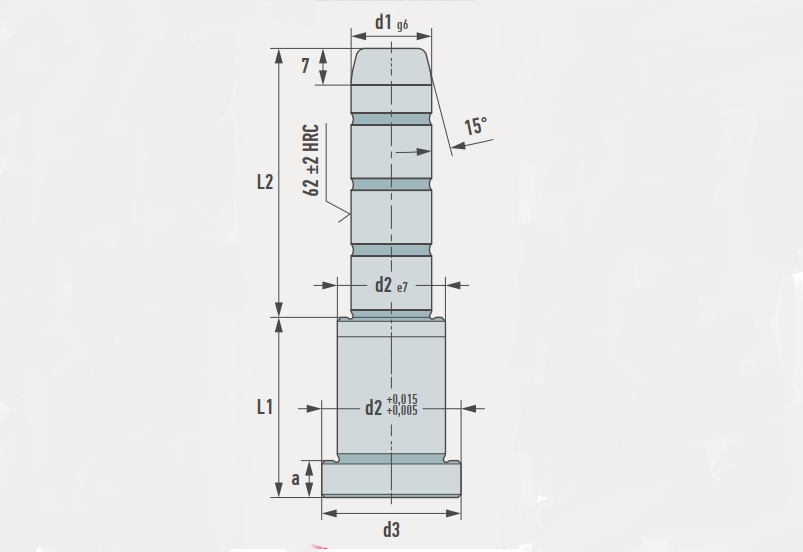

Код товара	a	d1	d2	d3	L1	L2
TF-3840	4	12	16	19	26	26
TF-3841	4	12	16	19	26	36
TF-3842	4	12	16	19	26	46
TF-3843	4	12	16	19	26	56
TF-3844	4	12	16	19	36	26
TF-3845	4	12	16	19	36	36
TF-3846	4	12	16	19	36	46
TF-3847	4	12	16	19	36	56
TF-3848	4	12	16	19	46	26
TF-3849	4	12	16	19	46	36
TF-3850	4	12	16	19	46	46
TF-3851	4	12	16	19	46	56
TF-3852	4	12	16	19	46	66
TF-3853	6	14	20	25	26	26
TF-3854	6	14	20	25	26	36
TF-3855	6	14	20	25	26	46
TF-3856	6	14	20	25	26	56
TF-3857	6	14	20	25	26	66
TF-3858	6	14	20	25	26	76
TF-3859	6	14	20	25	36	26
TF-3860	6	14	20	25	36	36
TF-3861	6	14	20	25	36	46
TF-3862	6	14	20	25	36	56
TF-3863	6	14	20	25	36	66
TF-3864	6	14	20	25	36	86
TF-3865	6	14	20	25	46	26
TF-3866	6	14	20	25	46	36
TF-3867	6	14	20	25	46	46
TF-3868	6	14	20	25	46	56
TF-3869	6	14	20	25	46	76
TF-3870	6	14	20	25	46	96
TF-3871	6	14	20	25	56	26
TF-3872	6	14	20	25	56	36
TF-3873	6	14	20	25	56	46
TF-3874	6	14	20	25	56	66
TF-3875	6	14	20	25	56	86
TF-3876	6	14	20	25	56	106
TF-3877	6	16	24	28	26	26
TF-3878	6	16	24	28	26	36
TF-3879	6	16	24	28	26	46
TF-3780	6	16	24	28	26	56
TF-3781	6	16	24	28	26	76
TF-3782	6	16	24	28	26	96
TF-3787	6	16	24	28	36	26
TF-3788	6	16	24	28	36	36
TF-3789	6	16	24	28	36	46
TF-3790	6	16	24	28	36	56
TF-3893	6	16	24	28	36	66
TF-4270	6	16	24	28	36	86
TF-4916	6	16	24	28	36	106
TF-3900	6	16	24	28	46	26
TF-3901	6	16	24	28	46	36
TF-3902	6	16	24	28	46	46
TF-3903	6	16	24	28	46	56
TF-3904	6	16	24	28	46	66
TF-3905	6	16	24	28	46	76
TF-3906	6	16	24	28	46	96
TF-3907	6	16	24	28	46	116
TF-3911	6	16	24	28	56	26
TF-3912	6	16	24	28	56	36
TF-3913	6	16	24	28	56	46
TF-6124	6	16	24	28	56	56
TF-3914	6	16	24	28	56	66
TF-3915	6	16	24	28	56	76
TF-3916	6	16	24	28	56	96
TF-3917	6	16	24	28	56	116
TF-3921	6	16	24	28	66	26
TF-3922	6	16	24	28	66	36
TF-3923	6	16	24	28	66	46
TF-3924	6	16	24	28	66	56
TF-3925	6	16	24	28	66	66
TF-3926	6	16	24	28	66	76
TF-3927	6	16	24	28	66	86
TF-3928	6	16	24	28	66	106
TF-3929	6	16	24	28	66	116
TF-3930	6	16	24	28	76	26
TF-3931	6	16	24	28	76	36
TF-3932	6	16	24	28	76	46
TF-3933	6	16	24	28	76	56
TF-3934	6	16	24	28	76	66
TF-3935	6	16	24	28	76	76
TF-3936	6	16	24	28	76	96
TF-3937	6	16	24	28	76	116
TF-3938	6	16	24	28	86	26
TF-3939	6	16	24	28	86	36
TF-3940	6	16	24	28	86	46
TF-3941	6	16	24	28	86	56
TF-3942	6	16	24	28	86	66
TF-3943	6	16	24	28	86	76
TF-3944	6	16	24	28	86	96
TF-3945	6	16	24	28	86	116
TF-3946	6	18	26	31	26	26
TF-3947	6	18	26	31	26	36
TF-3948	6	18	26	31	26	46
TF-3949	6	18	26	31	26	56
TF-3950	6	18	26	31	26	66
TF-3951	6	18	26	31	26	86
TF-3952	6	18	26	31	36	26
TF-3953	6	18	26	31	36	36
TF-3954	6	18	26	31	36	46
TF-3955	6	18	26	31	36	56
TF-3956	6	18	26	31	36	66
TF-3957	6	18	26	31	36	86
TF-3958	6	18	26	31	36	106
TF-3959	6	18	26	31	46	26
TF-3960	6	18	26	31	46	36
TF-3961	6	18	26	31	46	46
TF-3962	6	18	26	31	46	56
TF-3963	6	18	26	31	46	66
TF-3964	6	18	26	31	46	86
TF-3965	6	18	26	31	46	106
TF-3966	6	18	26	31	46	126
TF-3967	6	18	26	31	56	26
TF-3968	6	18	26	31	56	36
TF-3969	6	18	26	31	56	46
TF-3970	6	18	26	31	56	56
TF-3971	6	18	26	31	56	66
TF-3972	6	18	26	31	56	86
TF-3973	6	18	26	31	56	106
TF-3974	6	18	26	31	56	126
TF-3975	6	18	26	31	66	26
TF-3976	6	18	26	31	66	36
TF-3977	6	18	26	31	66	56
TF-3978	6	18	26	31	66	76
TF-3979	6	18	26	31	66	96
TF-3980	6	18	26	31	66	116
TF-3981	6	18	26	31	76	26
TF-3982	6	18	26	31	76	46
TF-3983	6	18	26	31	76	66
TF-3984	6	18	26	31	76	86
TF-3985	6	18	26	31	76	106
TF-3986	6	18	26	31	76	126
TF-3987	6	18	26	31	86	26
TF-3988	6	18	26	31	86	46
TF-3989	6	18	26	31	86	66
TF-3990	6	18	26	31	86	86
TF-3991	6	18	26	31	86	106
TF-3992	6	18	26	31	86	126
TF-3993	6	20	28	32	26	26
TF-3994	6	20	28	32	26	36
TF-3995	6	20	28	32	26	46
TF-3996	6	20	28	32	26	56
TF-3997	6	20	28	32	26	66
TF-3998	6	20	28	32	26	86
TF-4003	6	20	28	32	36	26
TF-4004	6	20	28	32	36	36
TF-4005	6	20	28	32	36	46
TF-4006	6	20	28	32	36	56
TF-4007	6	20	28	32	36	66
TF-4008	6	20	28	32	36	76
TF-4009	6	20	28	32	36	96
TF-4015	6	20	28	32	46	26
TF-4016	6	20	28	32	46	36
TF-4017	6	20	28	32	46	46
TF-4018	6	20	28	32	46	56
TF-4019	6	20	28	32	46	66
TF-4020	6	20	28	32	46	76
TF-4021	6	20	28	32	46	86
TF-4022	6	20	28	32	46	106
TF-4028	6	20	28	32	56	26
TF-4029	6	20	28	32	56	36
TF-4030	6	20	28	32	56	46
TF-4031	6	20	28	32	56	56
TF-4032	6	20	28	32	56	66
TF-4033	6	20	28	32	56	76
TF-4034	6	20	28	32	56	96
TF-4035	6	20	28	32	56	116
TF-4039	6	20	28	32	66	26
TF-4040	6	20	28	32	66	36
TF-4041	6	20	28	32	66	46
TF-4042	6	20	28	32	66	56
TF-4043	6	20	28	32	66	66
TF-4044	6	20	28	32	66	76
TF-4045	6	20	28	32	66	96
TF-4046	6	20	28	32	66	116
TF-4047	6	20	28	32	76	26
TF-4048	6	20	28	32	76	36
TF-4049	6	20	28	32	76	46
TF-4050	6	20	28	32	76	56
TF-4051	6	20	28	32	76	66
TF-4052	6	20	28	32	76	76
TF-4053	6	20	28	32	76	86
TF-4054	6	20	28	32	76	106
TF-4055	6	20	28	32	76	126
TF-4056	6	20	28	32	86	26
TF-4057	6	20	28	32	86	36
TF-4058	6	20	28	32	86	46
TF-4059	6	20	28	32	86	56
TF-4060	6	20	28	32	86	66
TF-4061	6	20	28	32	86	76
TF-4062	6	20	28	32	86	86
TF-4063	6	20	28	32	86	106
TF-4064	6	20	28	32	86	126
TF-4065	6	20	28	32	96	26
TF-4066	6	20	28	32	96	36
TF-4067	6	20	28	32	96	46
TF-4068	6	20	28	32	96	56
TF-4069	6	20	28	32	96	66
TF-4070	6	20	28	32	96	76
TF-4071	6	20	28	32	96	86
TF-4072	6	20	28	32	96	106
TF-4073	6	20	28	32	96	126
TF-4074	8	25	34	38	26	26
TF-4075	8	25	34	38	26	36
TF-4076	8	25	34	38	26	46
TF-4077	8	25	34	38	26	56
TF-4078	8	25	34	38	26	66
TF-4079	8	25	34	38	26	76
TF-4080	8	25	34	38	26	96
TF-4081	8	25	34	38	36	26
TF-4082	8	25	34	38	36	36
TF-4083	8	25	34	38	36	46
TF-4084	8	25	34	38	36	56
TF-4085	8	25	34	38	36	66
TF-4086	8	25	34	38	36	76
TF-4087	8	25	34	38	36	86
TF-4088	8	25	34	38	36	106
TF-4091	8	25	34	38	46	26
TF-4092	8	25	34	38	46	36
TF-4093	8	25	34	38	46	46
TF-4094	8	25	34	38	46	56
TF-4095	8	25	34	38	46	66
TF-4096	8	25	34	38	46	76
TF-4097	8	25	34	38	46	96
TF-4098	8	25	34	38	46	116
TF-4101	8	25	34	38	56	26
TF-4102	8	25	34	38	56	36
TF-4103	8	25	34	38	56	46
TF-4104	8	25	34	38	56	56
TF-4105	8	25	34	38	56	66
TF-4106	8	25	34	38	56	76
TF-4107	8	25	34	38	56	96
TF-4108	8	25	34	38	56	116
TF-4111	8	25	34	38	66	26
TF-4112	8	25	34	38	66	36
TF-4113	8	25	34	38	66	46
TF-4114	8	25	34	38	66	56
TF-4115	8	25	34	38	66	66
TF-4116	8	25	34	38	66	76
TF-4117	8	25	34	38	66	86
TF-4118	8	25	34	38	66	106
TF-4119	8	25	34	38	66	126
TF-4120	8	25	34	38	76	26
TF-4121	8	25	34	38	76	36
TF-4122	8	25	34	38	76	46
TF-4123	8	25	34	38	76	56
TF-4124	8	25	34	38	76	66
TF-4125	8	25	34	38	76	76
TF-4126	8	25	34	38	76	86
TF-4127	8	25	34	38	76	106
TF-4128	8	25	34	38	76	126
TF-4129	8	25	34	38	86	36
TF-4130	8	25	34	38	86	46
TF-4131	8	25	34	38	86	56
TF-4132	8	25	34	38	86	66
TF-4133	8	25	34	38	86	76
TF-4134	8	25	34	38	86	86
TF-4135	8	25	34	38	86	96
TF-4136	8	25	34	38	86	116
TF-4137	8	25	34	38	86	136
TF-4138	8	25	34	38	96	36
TF-4139	8	25	34	38	96	46
TF-4140	8	25	34	38	96	56
TF-4141	8	25	34	38	96	66
TF-4142	8	25	34	38	96	76
TF-4143	8	25	34	38	96	86
TF-4144	8	25	34	38	96	96
TF-4145	8	25	34	38	96	116
TF-4146	8	25	34	38	96	136
TF-4147	8	25	34	38	106	46
TF-4148	8	25	34	38	106	56
TF-4149	8	25	34	38	106	66
TF-4150	8	25	34	38	106	76
TF-4151	8	25	34	38	106	86
TF-4152	8	25	34	38	106	96
TF-4153	8	25	34	38	106	116
TF-4154	8	25	34	38	106	136
TF-4155	10	30	39	43	36	36
TF-4156	10	30	39	43	36	46
TF-4157	10	30	39	43	36	56
TF-4158	10	30	39	43	36	66
TF-4159	10	30	39	43	36	86
TF-4160	10	30	39	43	36	106
TF-4161	10	30	39	43	46	36
TF-4162	10	30	39	43	46	46
TF-4163	10	30	39	43	46	56
TF-4164	10	30	39	43	46	66
TF-4165	10	30	39	43	46	76
TF-4166	10	30	39	43	46	96
TF-4167	10	30	39	43	46	116
TF-4168	10	30	39	43	56	36
TF-4169	10	30	39	43	56	46
TF-4170	10	30	39	43	56	56
TF-4171	10	30	39	43	56	66
TF-4172	10	30	39	43	56	76
TF-4173	10	30	39	43	56	86
TF-4174	10	30	39	43	56	106
TF-4175	10	30	39	43	56	126
TF-4176	10	30	39	43	66	36
TF-4177	10	30	39	43	66	46
TF-4178	10	30	39	43	66	56
TF-4179	10	30	39	43	66	66
TF-4180	10	30	39	43	66	76
TF-4181	10	30	39	43	66	86
TF-4182	10	30	39	43	66	96
TF-4183	10	30	39	43	66	116
TF-4184	10	30	39	43	66	136
TF-4185	10	30	39	43	76	36
TF-4256	10	30	39	43	76	46
TF-4257	10	30	39	43	76	56
TF-4258	10	30	39	43	76	76
TF-4259	10	30	39	43	76	96
TF-4260	10	30	39	43	76	116
TF-4261	10	30	39	43	76	136
TF-4263	10	30	39	43	86	36
TF-4264	10	30	39	43	86	46
TF-4265	10	30	39	43	86	66
TF-4266	10	30	39	43	86	86
TF-4267	10	30	39	43	86	106
TF-4268	10	30	39	43	86	126
TF-4269	10	30	39	43	86	146
TF-4186	10	30	39	43	96	46
TF-4187	10	30	39	43	96	66
TF-4188	10	30	39	43	96	86
TF-4189	10	30	39	43	96	106
TF-4190	10	30	39	43	96	126
TF-4191	10	30	39	43	96	146
TF-4192	10	30	39	43	106	56
TF-4193	10	30	39	43	106	76
TF-4194	10	30	39	43	106	96
TF-4195	10	30	39	43	106	116
TF-4196	10	30	39	43	106	136
TF-4197	10	30	39	43	116	56
TF-4198	10	30	39	43	116	76
TF-4199	10	30	39	43	116	96
TF-4200	10	30	39	43	116	116
TF-4201	10	30	39	43	116	136
TF-4202	10	40	54	58	56	56
TF-4203	10	40	54	58	56	86
TF-4204	10	40	54	58	56	106
TF-4205	10	40	54	58	56	126
TF-4207	10	40	54	58	56	156
TF-4208	10	40	54	58	56	186
TF-4209	10	40	54	58	66	66
TF-4210	10	40	54	58	66	96
TF-4211	10	40	54	58	66	116
TF-4212	10	40	54	58	66	136
TF-4213	10	40	54	58	66	166
TF-4214	10	40	54	58	66	196
TF-4215	10	40	54	58	76	76
TF-4217	10	40	54	58	76	106
TF-4218	10	40	54	58	76	126
TF-4219	10	40	54	58	76	146
TF-4220	10	40	54	58	76	166
TF-4221	10	40	54	58	76	196
TF-4222	10	40	54	58	76	216
TF-4223	10	40	54	58	86	86
TF-4224	10	40	54	58	86	126
TF-4225	10	40	54	58	86	146
TF-4226	10	40	54	58	86	176
TF-4227	10	40	54	58	86	206
TF-4228	10	40	54	58	86	226
TF-4229	10	40	54	58	96	96
TF-4230	10	40	54	58	96	136
TF-4231	10	40	54	58	96	156
TF-4232	10	40	54	58	96	186
TF-4233	10	40	54	58	96	216
TF-4234	10	40	54	58	96	236
TF-4235	10	40	54	58	106	106
TF-4236	10	40	54	58	106	126
TF-4237	10	40	54	58	106	156
TF-4238	10	40	54	58	106	186
TF-4239	10	40	54	58	106	226
TF-4240	10	40	54	58	106	246
TF-4241	10	40	54	58	116	116
TF-4242	10	40	54	58	116	136
TF-4243	10	40	54	58	116	166
TF-4244	10	40	54	58	116	196
TF-4245	10	40	54	58	116	236
TF-4246	10	40	54	58	116	256
TF-4247	10	40	54	58	126	126
TF-4248	10	40	54	58	126	166
TF-4249	10	40	54	58	126	196
TF-4250	10	40	54	58	126	236
TF-4251	10	40	54	58	126	266
TF-4252	10	40	54	58	136	136
TF-4253	10	40	54	58	136	196
TF-4254	10	40	54	58	136	226
TF-4255	10	40	54	58	136	266

Колонка ступенчатая

Колонка ступенчатая

Характеристики
