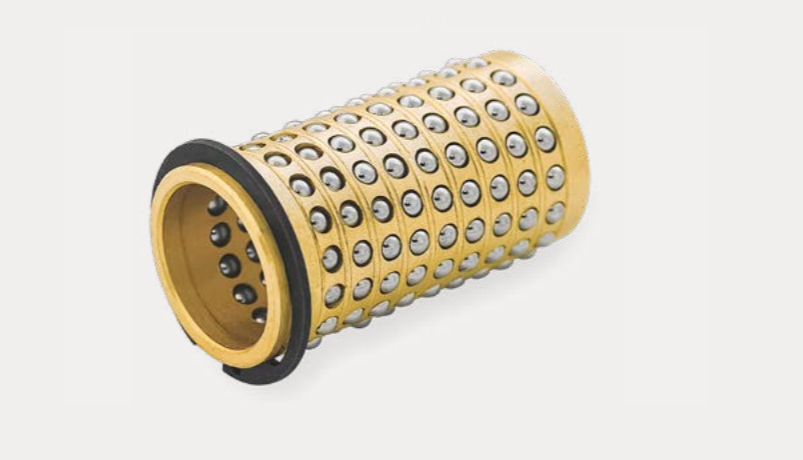

Сепараторная втулка
Сепараторная втулка
Материал: Латунь ЛС59-3
Твердость: 62±2 HRC
Характеристики

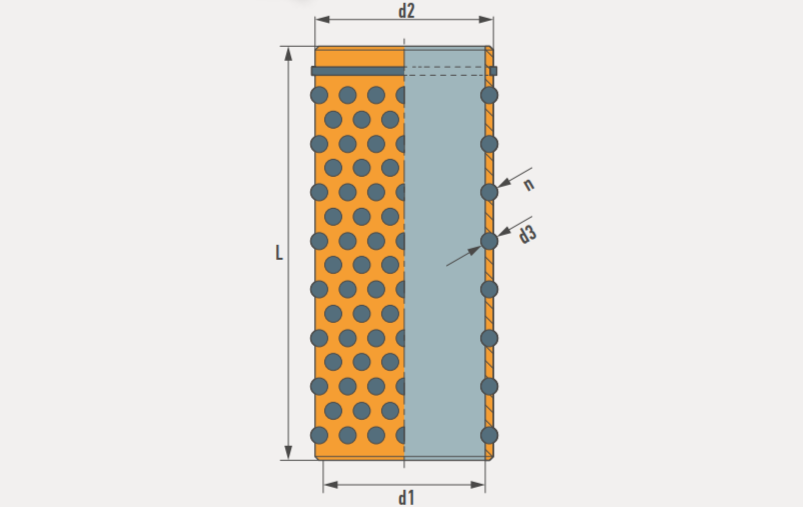

| Код товара | d1 | L | d2 | d3 | n |
| TF-5072 | 12 | 40 | 16 | 2 | 176 |
| TF-5073 | 12 | 56 | 16 | 2 | 272 |
| TF-5074 | 15 | 45 | 21 | 3 | 140 |
| TF-5075 | 15 | 56 | 21 | 3 | 196 |
| TF-5076 | 15 | 71 | 21 | 3 | 238 |
| TF-5077 | 16 | 45 | 22 | 3 | 140 |
| TF-5078 | 16 | 56 | 22 | 3 | 196 |
| TF-5079 | 16 | 71 | 22 | 3 | 238 |
| TF-5080 | 18 | 45 | 24 | 3 | 176 |
| TF-5081 | 18 | 56 | 24 | 3 | 240 |
| TF-5082 | 18 | 71 | 24 | 3 | 272 |
| TF-5083 | 19 | 45 | 25 | 3 | 180 |
| TF-5084 | 19 | 56 | 25 | 3 | 234 |
| TF-5085 | 19 | 71 | 25 | 3 | 306 |
| TF-5086 | 19 | 80 | 25 | 3 | 342 |
| TF-5087 | 19 | 95 | 25 | 3 | 414 |
| TF-5088 | 20 | 45 | 26 | 3 | 180 |
| TF-5089 | 20 | 56 | 26 | 3 | 234 |
| TF-5090 | 20 | 71 | 26 | 3 | 306 |
| TF-5091 | 20 | 80 | 26 | 3 | 342 |
| TF-5092 | 20 | 95 | 26 | 3 | 414 |
| TF-5093 | 24 | 45 | 30 | 3 | 180 |
| TF-5094 | 24 | 56 | 30 | 3 | 240 |
| TF-5095 | 24 | 71 | 30 | 3 | 280 |
| TF-5096 | 24 | 80 | 30 | 3 | 320 |
| TF-5097 | 24 | 95 | 30 | 3 | 440 |
| TF-5098 | 24 | 105 | 30 | 3 | 480 |
| TF-5099 | 24 | 120 | 30 | 3 | 560 |
| TF-5100 | 25 | 45 | 31 | 3 | 180 |
| TF-5101 | 25 | 56 | 31 | 3 | 240 |
| TF-5102 | 25 | 71 | 31 | 3 | 280 |
| TF-5103 | 25 | 80 | 31 | 3 | 320 |
| TF-5104 | 25 | 95 | 31 | 3 | 440 |
| TF-5105 | 25 | 105 | 31 | 3 | 480 |
| TF-5106 | 25 | 120 | 31 | 3 | 560 |
| TF-5107 | 30 | 45 | 38 | 4 | 140 |
| TF-5108 | 30 | 56 | 38 | 4 | 180 |
| TF-5109 | 30 | 75 | 38 | 4 | 240 |
| TF-5110 | 30 | 80 | 38 | 4 | 280 |
| TF-5111 | 30 | 95 | 38 | 4 | 340 |
| TF-5112 | 30 | 105 | 38 | 4 | 380 |
| TF-5113 | 30 | 120 | 38 | 4 | 420 |
| TF-5114 | 30 | 140 | 38 | 4 | 500 |
| TF-5115 | 32 | 45 | 40 | 4 | 140 |
| TF-5116 | 32 | 56 | 40 | 4 | 180 |
| TF-5117 | 32 | 75 | 40 | 4 | 240 |
| TF-5118 | 32 | 80 | 40 | 4 | 280 |
| TF-5119 | 32 | 95 | 40 | 4 | 340 |
| TF-5120 | 32 | 105 | 40 | 4 | 380 |
| TF-5121 | 32 | 120 | 40 | 4 | 420 |
| TF-5122 | 32 | 140 | 40 | 4 | 500 |
| TF-5123 | 38 | 56 | 46 | 4 | 216 |
| TF-5124 | 38 | 71 | 46 | 4 | 288 |
| TF-5125 | 38 | 80 | 46 | 4 | 336 |
| TF-5126 | 38 | 95 | 46 | 4 | 408 |
| TF-5127 | 38 | 105 | 46 | 4 | 456 |
| TF-5128 | 38 | 120 | 46 | 4 | 528 |
| TF-5129 | 38 | 140 | 46 | 4 | 624 |
| TF-5130 | 38 | 160 | 46 | 4 | 720 |
| TF-5131 | 40 | 56 | 48 | 4 | 216 |
| TF-5132 | 40 | 71 | 48 | 4 | 288 |
| TF-5133 | 40 | 80 | 48 | 4 | 336 |
| TF-5134 | 40 | 95 | 48 | 4 | 408 |
| TF-5135 | 40 | 105 | 48 | 4 | 456 |
| TF-5136 | 40 | 120 | 48 | 4 | 528 |
| TF-5137 | 40 | 140 | 48 | 4 | 624 |
| TF-5138 | 40 | 160 | 48 | 4 | 720 |
| TF-5139 | 48 | 71 | 56 | 4 | 360 |
| TF-5140 | 48 | 80 | 56 | 4 | 390 |
| TF-5141 | 48 | 95 | 56 | 4 | 480 |
| TF-5142 | 48 | 105 | 56 | 4 | 540 |
| TF-5143 | 48 | 120 | 56 | 4 | 600 |
| TF-5144 | 48 | 140 | 56 | 4 | 720 |
| TF-5145 | 48 | 160 | 56 | 4 | 840 |
| TF-5146 | 50 | 71 | 58 | 4 | 360 |
| TF-5147 | 50 | 80 | 58 | 4 | 390 |
| TF-5148 | 50 | 95 | 58 | 4 | 480 |
| TF-5149 | 50 | 105 | 58 | 4 | 540 |
| TF-5150 | 50 | 120 | 58 | 4 | 600 |
| TF-5151 | 50 | 140 | 58 | 4 | 720 |
| TF-5152 | 50 | 160 | 58 | 4 | 840 |
| TF-5153 | 60 | 85 | 68 | 4 | 504 |
| TF-5279 | 60 | 95 | 68 | 4 | 558 |
| TF-5154 | 60 | 105 | 68 | 4 | 612 |
| TF-5280 | 60 | 120 | 68 | 4 | 720 |
| TF-5155 | 60 | 140 | 68 | 4 | 828 |
| TF-5156 | 60 | 160 | 68 | 4 | 972 |
| TF-5157 | 63 | 85 | 71 | 4 | 504 |
| TF-5281 | 63 | 95 | 71 | 4 | 558 |
| TF-5158 | 63 | 105 | 71 | 4 | 612 |
| TF-5282 | 63 | 120 | 71 | 4 | 720 |
| TF-5159 | 63 | 140 | 71 | 4 | 828 |
| TF-5160 | 63 | 160 | 71 | 4 | 972 |
